Dedicated Circuits for Heavy Tools in Workshop Power Solutions

If you have a shed located on a rural property and are planning to convert it into an efficient workshop, it is essential to prioritise the electrical setup. Utilising a MIG welder, air compressor, and table saw on the same circuit as your household can result in serious complications, including frequent breaker trips, flickering lights, and potentially dangerous overload scenarios that threaten both safety and operational efficiency.

This detailed guide outlines the critical aspects of wiring a dependable workshop in rural regions of the Mid North Coast. We will examine the significance of dedicated circuits, sub-boards, and the advantages of three-phase power for larger machinery. If your requirements are limited to basic electrical needs—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically addresses workshops that demand substantial power for intensive tasks.

Why Are Dedicated Circuits Essential for Workshop Power?

Many homes operate several power outlets on shared circuits, which usually suffices for low-power appliances like toasters and televisions. problems arise when trying to run a 32-amp MIG welder and an air compressor at the same time. Without proper management, this can lead to severe complications.

Consider the potential consequences of connecting heavy machinery to domestic circuits:

• Frequent breaker trips — A welder that draws over 30 amps on a 20-amp circuit will trip the breaker immediately or, in a worse-case scenario, cause the wiring to overheat before the breaker can respond.
• Voltage drops — Extended cable runs from the main board to the shed can result in voltage sag, causing your tools to operate at increased temperatures, perform inefficiently, and wear out more quickly.
• Power disruptions in the home — Your partner may experience a power outage in the kitchen due to the compressor’s startup, often leading to unwanted discussions.
• Heightened fire hazards — Overloaded wiring within walls and cable runs is a leading cause of electrical fires in rural areas.

Implementing dedicated circuits can effectively eliminate these issues. Each heavy tool should have its own dedicated circuit, properly sized for its load, along with individual breaker protection. This arrangement ensures that nothing is shared, thus preventing overload.

Assess the Power Consumption of Common Workshop Tools

Before your electrician can design an effective circuit layout, it is crucial to grasp the power requirements of your equipment. Below is a summary of the typical power draws for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units will have different power requirements (more on that later).
• Air compressor — Consumes around 10A to 15A. The startup surge can be significant—compressor motors often draw three to four times their running current for a few seconds at startup.
• Table saw — Generally uses between 10A to 15A for a quality cabinet saw. More affordable contractor saws may consume less power, but you are likely not looking for a budget option.
• Lathe (wood or metal) — Similar to table saws, these generally require between 10A and 15A, with metal lathes usually on the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, meaning it should have its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus requiring a dedicated circuit.

When you total the power draw, it becomes clear that a single 20-amp circuit from the house will not suffice. A well-equipped workshop can easily require 80 to 100+ amps across all circuits when operating at full capacity, emphasising the necessity for a comprehensive electrical plan.

Choose the Proper Circuit Breaker Size and Implement RCD Protection

Each circuit in your workshop needs a breaker that aligns with the cable size and anticipated load. Your electrician will determine this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Ideal for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery that requires considerable power.
• Three-phase breakers — These should be specified according to the requirements of particular equipment (details below).

RCD protection is vital. In compliance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This legal requirement is designed to safeguard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs quickly cut power if there is a current leak to earth, which can differentiate between a minor shock and a serious injury.

Typically, your electrician will employ a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functionalities. RCBOs are particularly beneficial in workshops because a fault in one circuit does not disrupt power to others, resulting in a more reliable electrical system.

Install a Dedicated Sub-Board to Fulfil Your Workshop's Electrical Requirements

Rather than running multiple individual cables back to the main switchboard, setting up a dedicated sub-board in your workshop provides a more efficient solution. Here are the benefits:

• Shorter cable runs — One heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This configuration reduces voltage drop and decreases cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to return to the house to reset it, enhancing efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, making it easy to integrate new tools later.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the electricity in the house, which is an essential safety feature.

If your home switchboard is outdated or operating at full capacity, an upgrade may be necessary to effectively support the workshop sub-board. Older ceramic fuse boards are unlikely to safely manage the increased load.

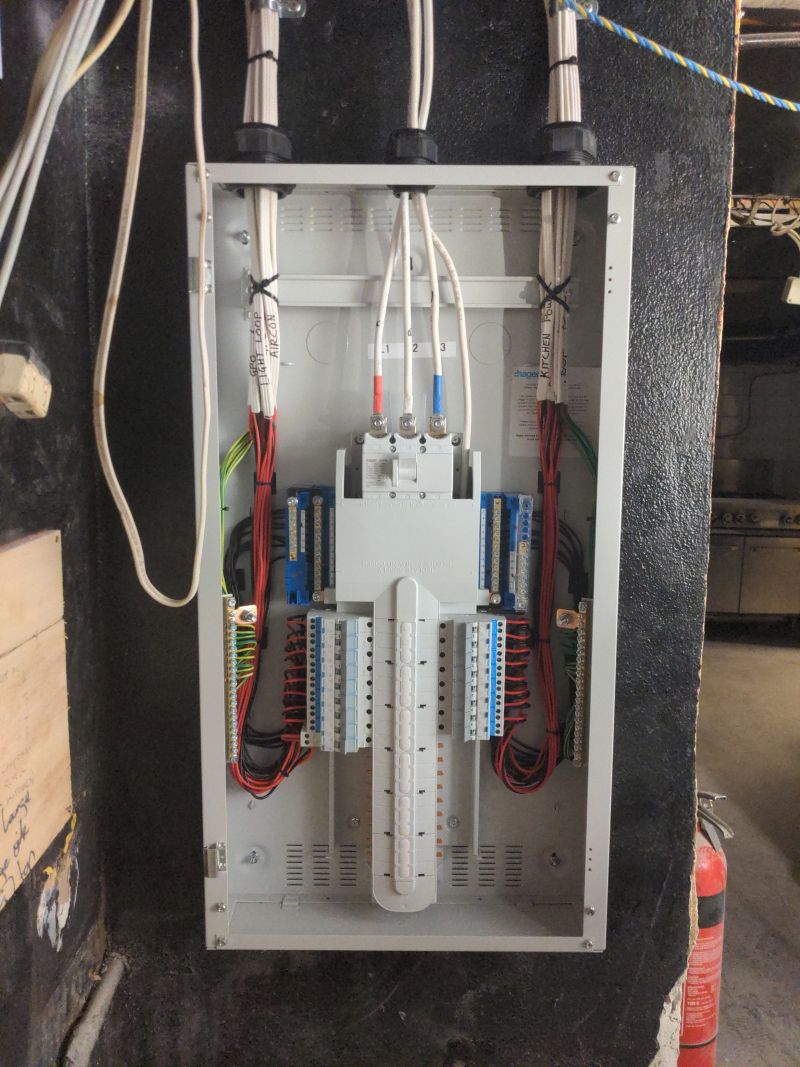

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

Create a Comprehensive Lighting Plan for Your Workshop

Sufficient lighting is crucial for safety in your workshop. Clear visibility is essential, particularly when working with sharp blades and hot materials. Here are some key lighting considerations:

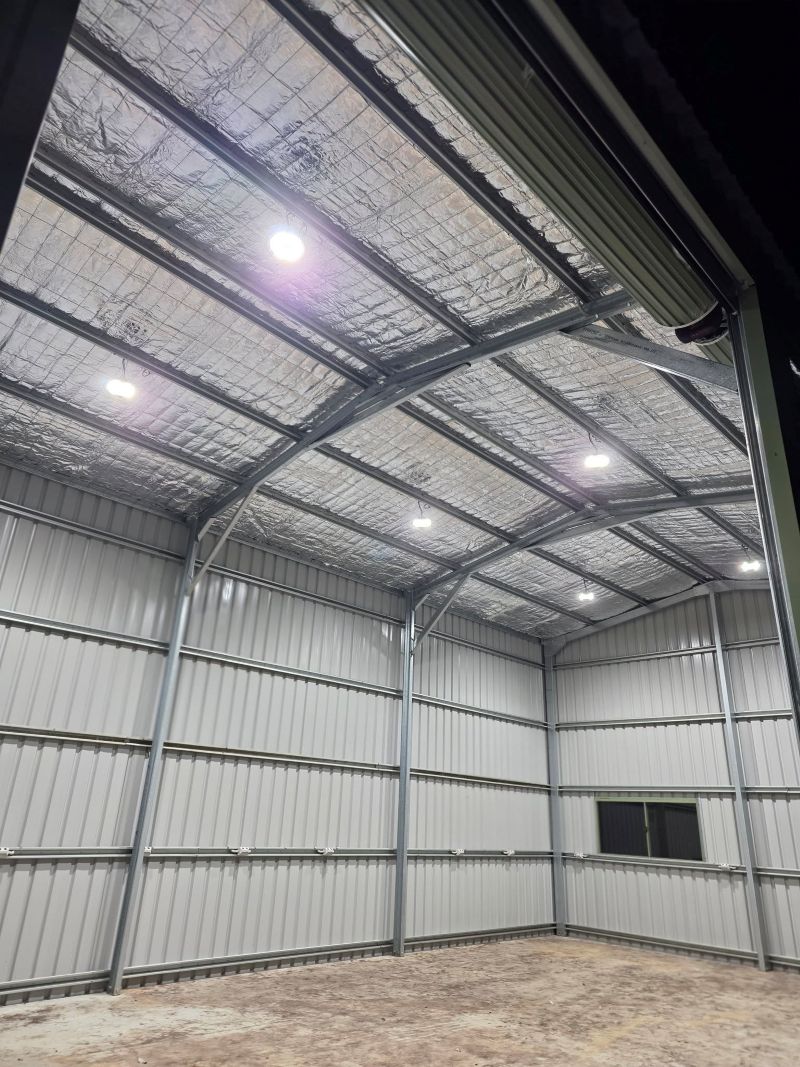

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become obstructed with sawdust and metal shavings. Opt for IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is vital for precision work, enhancing productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

Our team has extensive experience with lighting layouts in commercial spaces. We can assist you in creating a workshop lighting plan that significantly enhances your working environment while meeting safety standards.

Plan for Effective Ventilation and Dust Extraction Circuits

When engaged in woodworking or welding, ensuring proper ventilation is as critical as having sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits due to several important factors:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Leverage the Benefits of Three-Phase Power for Heavy Equipment

When engaging in intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power offers several distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and provide greater power without the excessive startup surges often associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, prolonging the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas of the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further information, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will necessitate the installation of a three-phase switchboard equipped with adequately rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools equipped with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges whenever a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your equipment is at significant risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they affect your tools. This precaution is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is prone to storms—which is common in the Mid North Coast—we recommend adding surge protection at the main switchboard to safeguard against lightning-induced surges that could damage your equipment.

For properties that rely on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without the risk of back-feeding or damaging connected equipment.

Explore Additional Features for Your Workshop Fit-Out

Here are several additional features to consider incorporating into your workshop wiring from the outset:

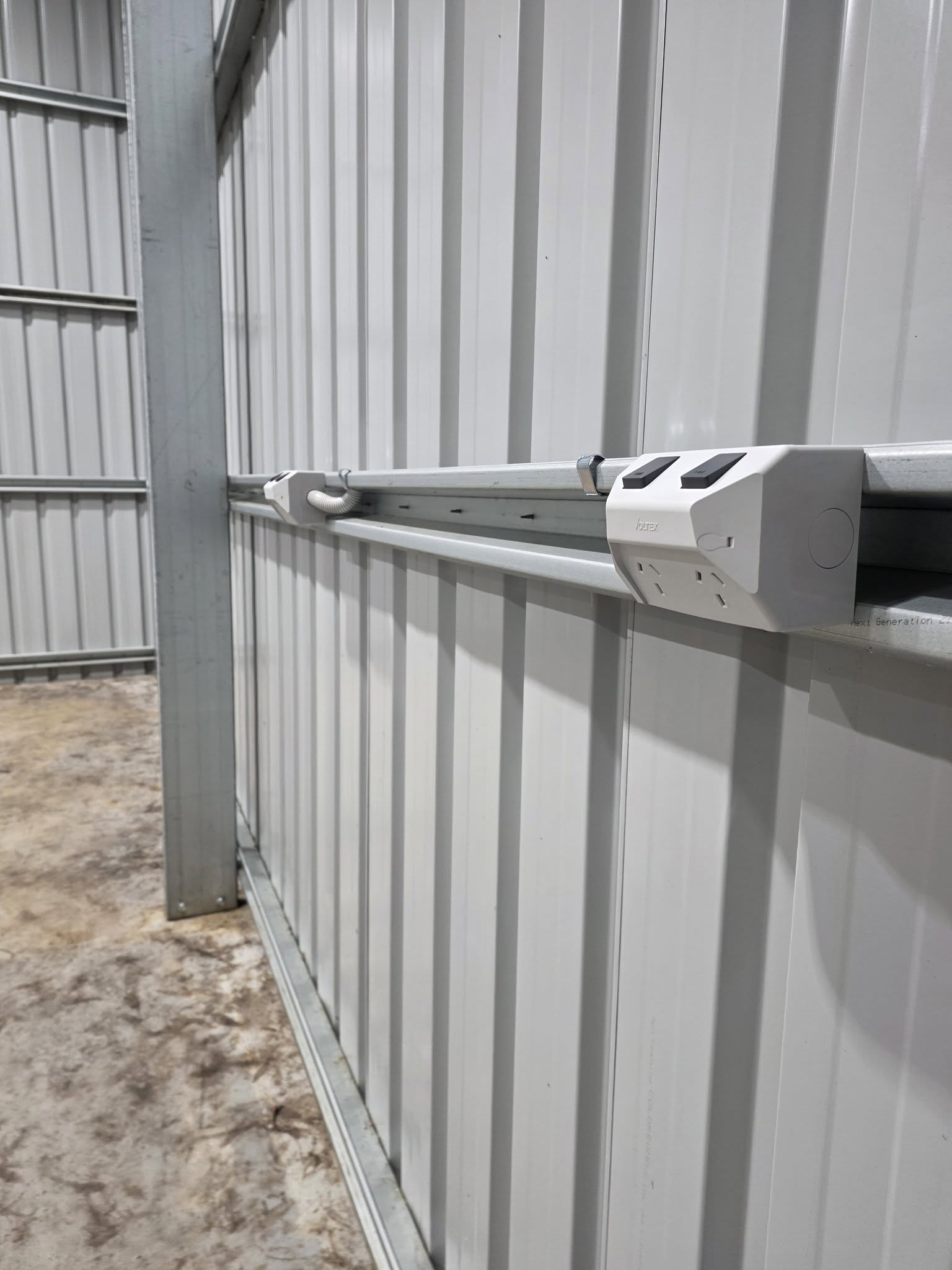

• Ample power points — Install more power points and switches than you think you will need. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and place outlets conveniently near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are completed.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas with insufficient street lighting.
• EV or equipment charging — If you are using electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Costs of Your Workshop Electrical Fit-Out

Cost estimates will vary based on the size of the workshop, the number of circuits required, and whether three-phase power is needed. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Comprehensive dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, extensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, full fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the necessity for upgrades from Essential Energy will increase overall costs. We provide transparent quotes based on your specific workshop and equipment needs—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is a critical point to emphasise. In New South Wales, all electrical wiring work must be performed by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and connecting equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to hefty fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have serious consequences.

Your Frequently Asked Questions Addressed

Is It Possible to Operate My Welder from a Standard Power Point?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. any larger units necessitate a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you are welding regularly, it is crucial to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Required in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a few spares for future additions. We customise the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our complete guide on Do I Need Three-Phase Power on My Property? to determine if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your home switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will evaluate this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.
